SPECIFICATION

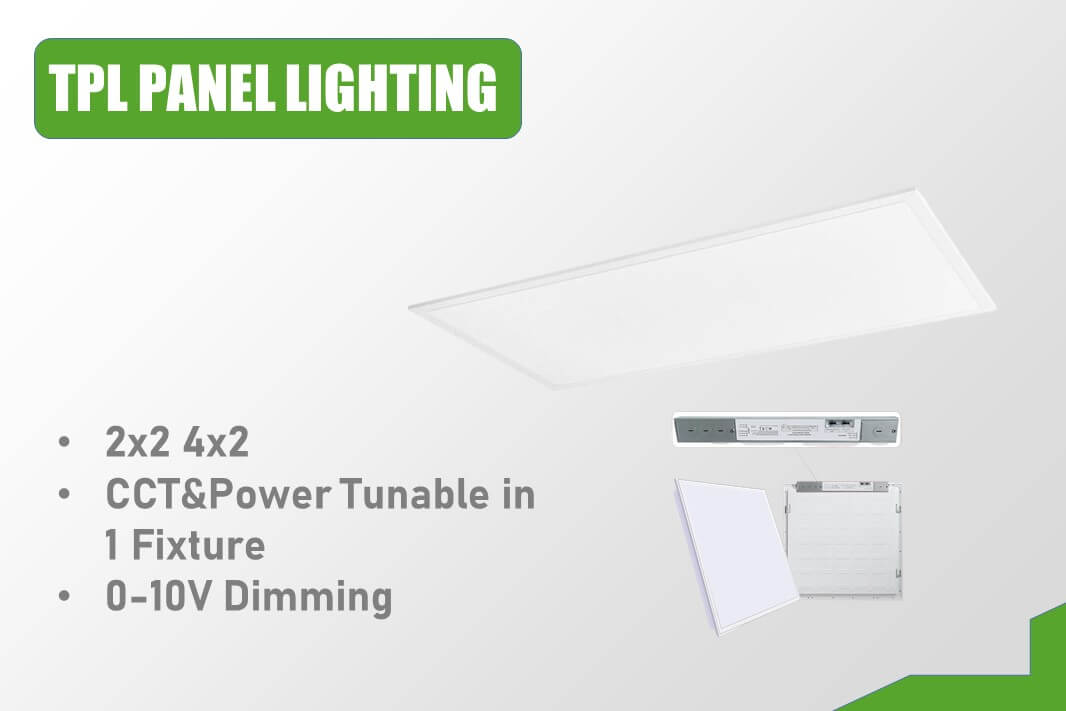

- Back-lit Tunable LED Panel Lights
- Work Voltage: 100-277vac
- 0-10v dimming
- Die-casting Aluminum+PC
- Beam Angle: 110 degree
- CRI >80
- PF>90%
- THD<15%
- Work voltage: 120-277vac ,120-347vac
- IP Rate: IP40
- Housing Color: White
- Working Temperature: -40℉~104℉/ -40℃~ 40℃
- UL cUL DLC RoHS
TECHNICAL DATA
| Model# | Tunable Power | Tunable CCT | Measurement |
| TPL22 | 20w/25w/30w/35w | 30K/40K/50K/60K | 2x2 ft /603*603 mm |
| TPL24 | 35w/40w/45w/50w | 30K/40K/50K/60K | 4x2 ft/1213*603 mm |
APPLICATION
OFTEN LIGHTING tunable led back-lit panel light is widely used in office,classroom,showroom,warehouse and any other places needs general lighting
